How to Charge 18650 Batteries Safely (And What Kills Them Early)

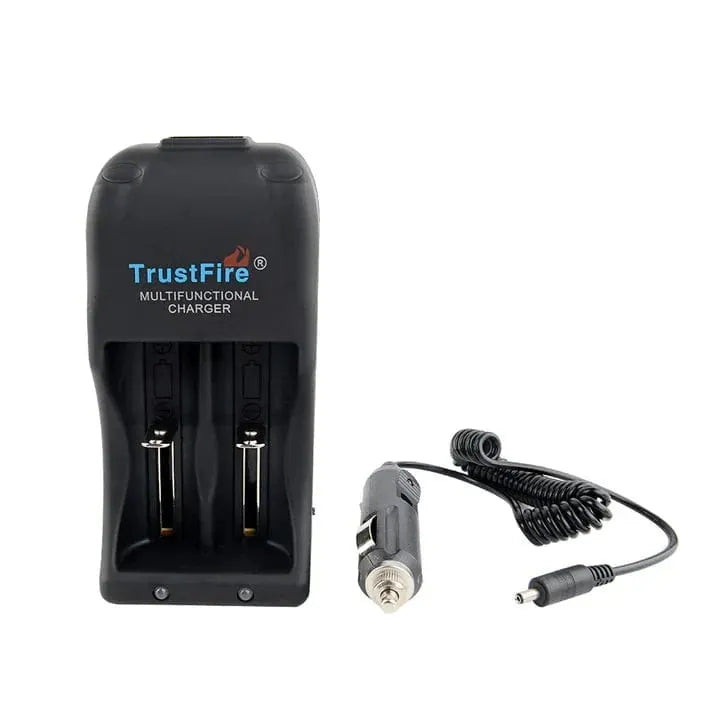

TrustFire TR-006 lithium battery charger for 18650 and 26650 cells

Christopher Smith |

Lithium cells are safe when charged properly and genuinely dangerous when they are not. The rules are short and worth knowing.

Use a charger built for lithium

A lithium-ion cell charges to 4.2 volts and needs a charger that knows to stop there. NiMH and alkaline chargers do not work this way. Using the wrong one is the single most common way people damage cells.

If your cells are LiFePO4 — usually marked 3.2V — they charge to about 3.6V instead. Chargers like our TrustFire TR-006 have a switch for exactly this. Set it correctly before you start, and check it if a charger has been sitting in a drawer; a knocked switch is a common cause of cells that never seem to fill.

The green light does not always mean full

Most budget chargers declare a cell finished at their first termination point and then continue trickling current in. The light says done; the cell is at perhaps 90%.

This is not a fault, and it is not harmful — stopping slightly short is arguably better for cell life. But if you want a genuinely full cell, leave it on a while after the light changes.

What actually kills lithium cells

Running them flat

Below roughly 2.5V per cell, permanent damage begins. A light left switched on in a bag is a classic way to ruin a battery. Protected cells cut off before this point, which is the main reason to buy them.

Heat

Charging or storing cells somewhere hot ages them quickly. A closed car in a Florida summer is genuinely bad for a lithium cell. Charge at room temperature, on a hard surface, not on carpet or a bed.

Storing them full

A cell kept at 100% for months loses capacity faster than one kept part-charged. For long-term storage, aim for roughly half charge and top it up before you need it.

Physical damage

A dented cell or a torn wrapper is a cell to retire. The wrapper is electrical insulation, not decoration — a nicked one can short against the light body. Loose cells rattling against keys or coins in a pocket is how that happens.

Mixing cells

In a light that takes more than one cell, use cells of the same size, brand, capacity and age, charged together. Mismatched cells discharge at different rates, and the weaker one can be driven into reverse by the stronger — which is one of the few ways a well-made cell fails badly.

Buy multi-cell batteries in matched sets and keep them together.

Beware the capacity claims

If an 18650 advertises 9000mAh, it is not true. Current chemistry tops out around 3500mAh in that size. Inflated ratings usually mean a low-grade cell in a printed wrapper, sometimes an older cell rewrapped.

Our 18650 is rated 3000mAh and our 21700 at 6000mAh — real figures for those sizes. A believable number is a good sign about everything else in the cell.

How long should a cell last

A good lithium cell handles roughly 300 to 500 full charge cycles before dropping to about 80% of its original capacity. In normal flashlight use that is several years.

Retire a cell when runtime is noticeably shorter than it was, when it will not hold charge for a week, when it gets hot while charging, or if it ever swells. A swollen cell should be recycled immediately, not used.

Disposal

Lithium cells do not belong in household rubbish. Most hardware stores and municipal recycling centres take them. Tape over the terminals before dropping them off so they cannot short in the bin.

Common questions

Can I charge an 18650 battery with a phone charger?

Not directly. A loose cell needs a lithium battery charger to control the voltage and stop at 4.2V. A USB phone charger can power that battery charger, or a flashlight with built-in USB charging, but it cannot charge a bare cell on its own.

How long does an 18650 take to charge?

Roughly the cell's capacity divided by the charger's current, plus extra time at the end as charging slows. A 3000mAh cell on a 1A charger takes around three to four hours from empty.

Is it safe to charge 18650 batteries overnight?

A good lithium charger stops at full, but the safest habit is not to leave cells charging unattended or sitting on the charger for days. Charge when you are around, and take them off when they are done.

What voltage is a fully charged 18650?

4.2V for a standard lithium-ion cell. Its nominal voltage is 3.6 to 3.7V, and it should not be run below roughly 2.5V.

Should I store lithium batteries in the fridge?

No. A cool, dry spot at room temperature, out of direct sun, is ideal. A fridge only adds condensation when the cells come back out.

Short version

  • Lithium charger, correct voltage setting, every time
  • The indicator light is optimistic — leave it a little longer for a full cell
  • Never run a cell completely flat; buy protected cells
  • Charge cool, on a hard surface, and store at about half charge
  • Match cells in multi-cell lights
  • Retire swollen, dented or torn-wrapper cells
